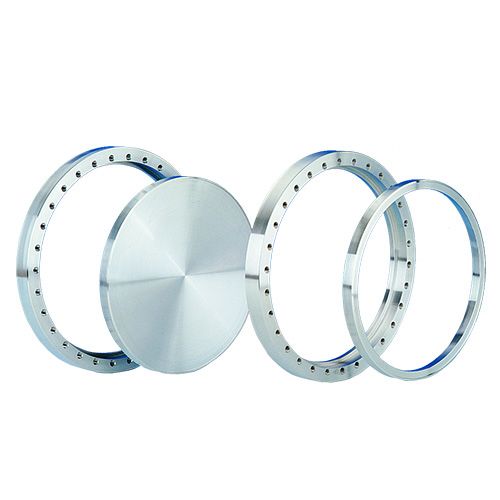

Flange, 12"x10", Rotatable, 304ss

Part Number / SKU
100059
$1,002.75
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100059.stp

100059_sc.dwg

100059_fr.dwg

100059_sc.dxf

100059_fr.dxf

Flange, 12"x10", Rotatable, 304ss
100059_sc_dwg (6.50 kB)
100059_fr_dxf (2.85 kB)
100059.stp (307.26 kB)
100059.stp (496.26 kB)
100059_fr_dwg (6.79 kB)
100059_sc_dxf (2.83 kB)

More Information

Specifications

Specifications
Weight (lb) 0.500000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 32
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN250CF 304mm | 12.00"
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 10 Inch Nominal (9.750)
