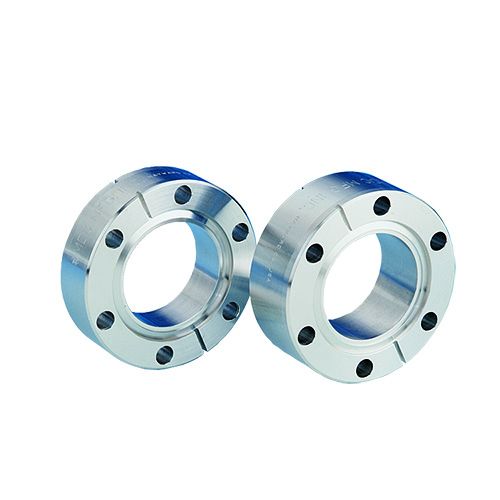

Double Sided Flange, 2.75"x1"

Part Number / SKU
140011
$81.90
Availability: In Stock
Quantity:
7 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

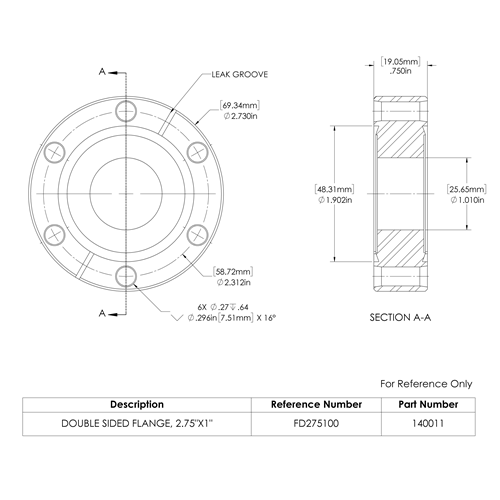

Double Sided Flange, 2.75"x1"
140011_FR_dwg (3.96 kB)
140011_sc_dxf (3.15 kB)
140011_fr_dxf (2.20 kB)
140011_SC_dwg (5.36 kB)
140011.stp (105.09 kB)

More Information

Specifications

Specifications
Weight (lb) 0.750000
Bolt Circle Diameter 2.312 inch
Bolt Hole Diameter 0.265 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 6
Bolt Hole Type Clearance
Flange Size DN40CF 70mm | 2.75" (2 3/4") OD
Flange Type ConFlat CF Flange
Internal Diameter (ID) 25.4mm | 1 Inch ID Nominal (1.010")
