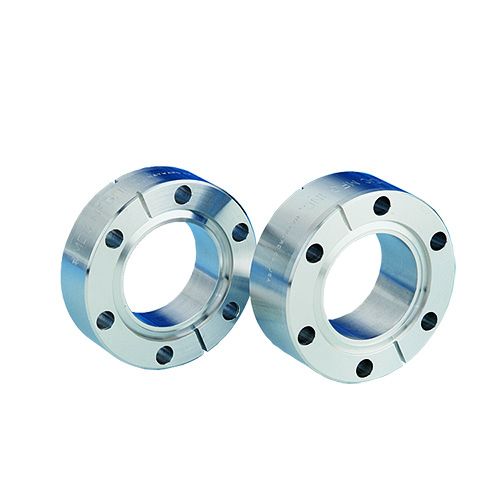

Double Sided Flange, 2.75"x1.5" Tapped, 1" T
Part Number / SKU
140042
$87.15
Availability:
6 Weeks

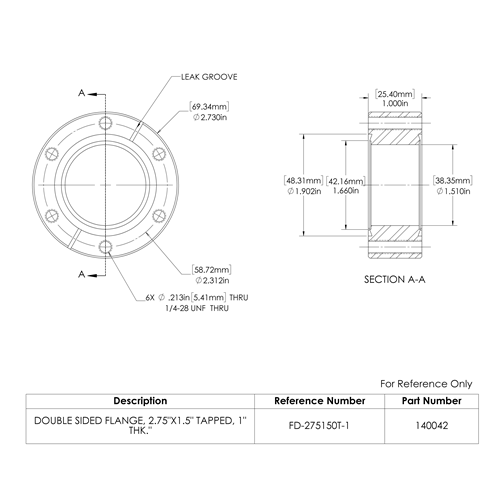

Double Sided Flange2.75"x1.5" Tapped, 1" T
More Information
Specifications
| Weight (lb) | 0.75 |
| Bolt Circle Diameter | 2.312 inch |
| Material | 304SS (1.4301 | UNS S30400) Stainless Steel |
| Number of Bolt Holes | 6 |
| Thread Size | 0.250-28 UNF |
| Bolt Hole Type | Tapped |
| Flange Size | DN40CF 70mm | 2.75" (2 3/4") OD |
| Flange Type | ConFlat CF Flange |
| Internal Diameter (ID) | 38.1mm | 1 1/2 Inch ID Nominal (1.510") |
