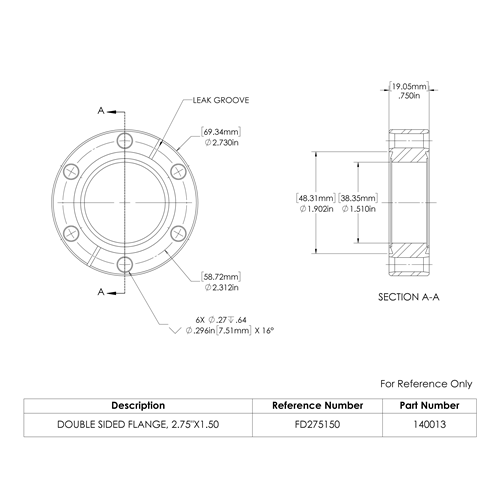

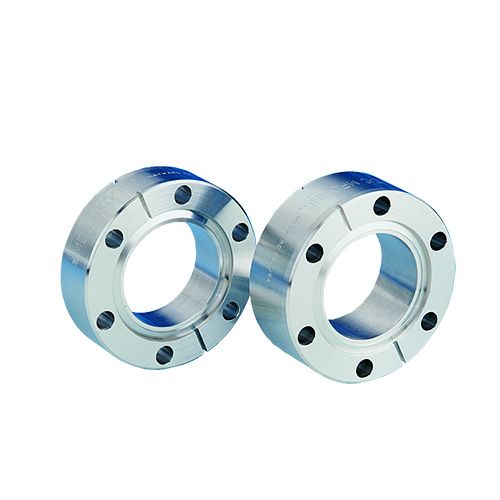

Double Sided Flange, 2.75"x1.50"
Part Number / SKU
140013
$50.40
Availability:
6 Weeks
Double Sided Flange, 2.75"x1.50"
More Information
Specifications
| Weight (lb) | 0.75 |
| Bolt Circle Diameter | 2.312 inch |
| Bolt Hole Diameter | 0.265 inch |
| Material | 304SS (1.4301 | UNS S30400) Stainless Steel |
| Number of Bolt Holes | 6 |
| Bolt Hole Type | Clearance |
| Flange Size | DN40CF 70mm | 2.75" (2 3/4") OD |
| Flange Type | ConFlat CF Flange |
| Internal Diameter (ID) | 38.1mm | 1 1/2 Inch ID Nominal (1.510") |
