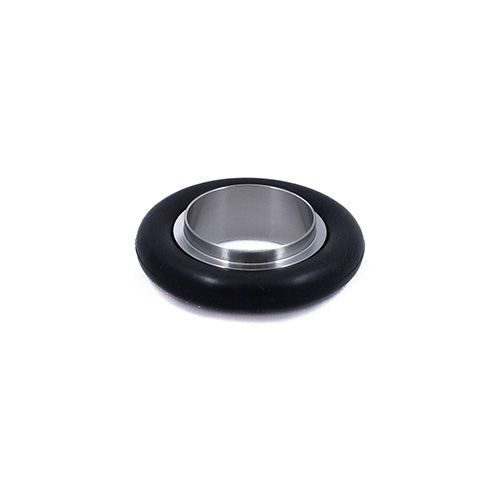

710000, Stainless Steel Centering Ring, ISO KF Kwik-Flange DN16KF NW16, FKM Elastomer

Part Number / SKU
710000
$8.40
Availability: In Stock
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Features

  • Standard ring mates two ISO KF Kwik-Flanges™ of equal size
  • Reducer ring mates two ISO KF Kwik-Flanges™ of unequal sizes
  • Includes elastomer gasket
  • Stainless steel
  • Vacuum rated to 1x10-8 Torr
  • EU and Metric Catalog Part #: 7710000

Specifications

Material                                             

  • Ring                      304ss
  • Gaskets                 Elastomer Gasket

Vacuum Range                  Vacuum rated to 1x10-8 Torr

Temperature Range          Bakeable to 150°C

Weight                             0.4lb to 1lb  or 0.2kg to 0.5kg maximum



More Information

Specifications

Specifications
Weight (lb) 0.25
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Reference Number K075-CR | K16-CR
Flange Size NW16
Flange Type ISO KF Kwik-Flange
