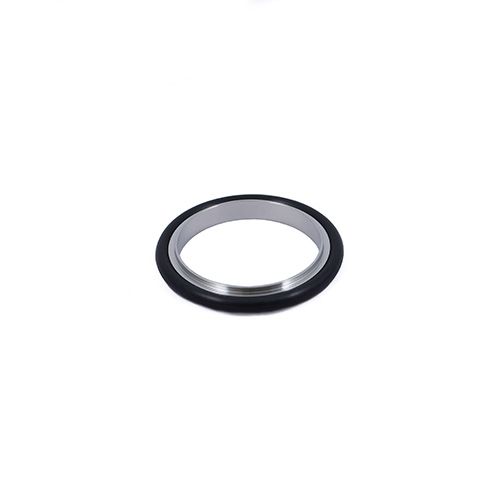

ISO KF Kwik-Flange, Centering Ring, NW50, DN50KF, FKM Elastomer, Stainless Steel, (1 Per Pack) Includes one elastomer gasket seal

Name: ISO KF Kwik-Flange, Centering Ring, NW50, DN50KF, FKM Elastomer, Stainless Steel, (1 Per Pack) Includes one elastomer gasket seal
SKU: 710003
Price: 16.8 USD
Availability: InStock

Part Number / SKU

710003

$16.80

Availability: 6 Weeks

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

710003.SLDDRW

Download

710003_TechnicalSpecs.rtf


710003_A.PDF

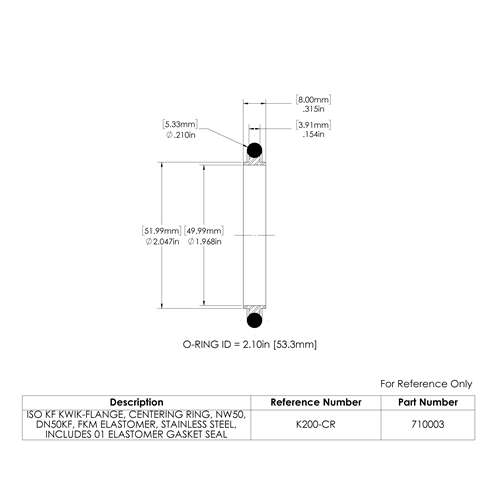

710003_A.DWG

710003_A.STEP

710003.SLDPRT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

Standard ring mates two ISO KF Kwik-Flanges™ of equal size
Reducer ring mates two ISO KF Kwik-Flanges™ of unequal sizes
Includes elastomer gasket
Stainless steel construction
Vacuum rated to 1x10-8 Torr
EU and Metric Catalog Part #: 7710003

Specifications

Material                                             

Ring            304ss or
Gaskets              Fluorocarbon-based fluoroelastomer (FKM / FPM) Elastomer Gasket

Vacuum Range                 Vacuum rated to 1x10-8 Torr

Temperature Range         Bakeable to 200 C, Sustained use at 150 C

Weight                      0.4lb to 1lb or 0.2kg to 0.5kg maximum

More Information

Specifications

Specifications
Weight (lb)	0.25
Material	304SS (1.4301 \| UNS S30400) Stainless Steel
Flange Size	NW50
Flange Type	ISO KF Kwik-Flange
