802002, Double Claw Clamp, ISO NW160-NW250, Al

Part Number / SKU
802002
$8.40
Availability: In Stock
Quantity:
954 Available
Standard Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

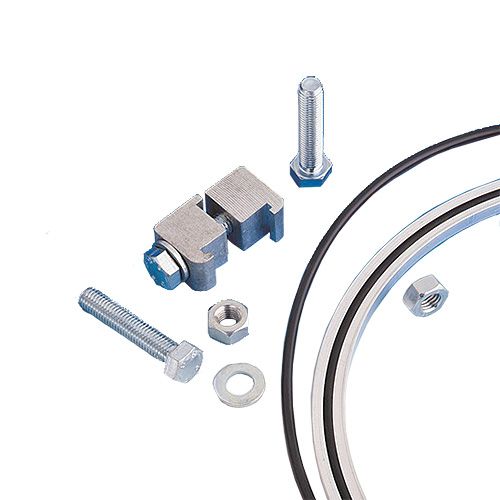

Double claw-clamp Assemblies are commonly used for making Large-Flange vacuum seal connections. Assembly is simplified by the 360° rotatable flanges and the self-centering feature of the centering ring. The vacuum seal is made by compressing the o-ring between the mating flanges. This is done by alternately wrench-tightening opposing pairs of clamps until the first metal-to-metal contact is made between the inner surfaces of the flanges and the spacing lip of the centering ring.

  • Fastens ISO LF Large-Flange: NW160, NW200, NW250
  • Quick make and break
  • Zinc-plated steel bolt
  • Aluminum (Al) claw construction
  • Requires centering ring with elastomer gasket
  • M10 X 45 metric bolt

More Information

Specifications

Specifications
Weight (lb) 0.250000
Material 6061-T6 Aluminum
Reference Number DC-10 | EU: DCC160/250
Vacuum Series High Vacuum (HV)
Flange Type ISO LF Large-Flange
