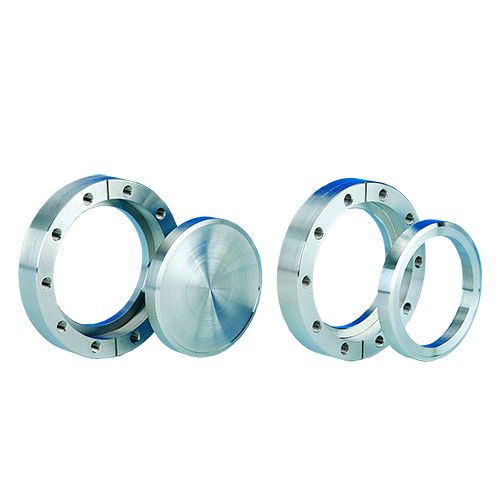

Flange, 4.58" x 3"Rotatable, 304ss

SKU
100024
$92.40
Availability: In Stock

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
5 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

Product Attachments

We are working on a seamless model download system, until it is completed we have a two step download if you click on the link below.

100024.stp

100024_sc.dwg

100024_fr.dwg

100024_sc.dxf

100024_fr.dxf

Flange, 4.58" x 3"Rotatable, 304ss
100024_fr_dwg (6.13 kB)
100024_sc_dxf (2.93 kB)
100024.stp (134.63 kB)
100024_fr_dxf (2.35 kB)
100024_sc_dwg (6.75 kB)

More Information

Specifications

Specifications
Weight 2.000000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 10
Bolt Hole Type Clearance
Flange Geometry Rotatable
Flange Size DN75CF 117mm | 4.625 " (4 5/8")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 3 Inch Nominal (2.875)
