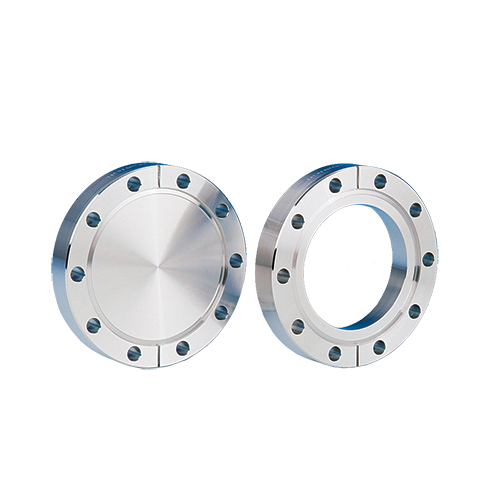

Flange, 4.58" x 3", Tapped, 304ss

Part Number / SKU
130024
$81.90
Availability: In Stock
Quantity:
20 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

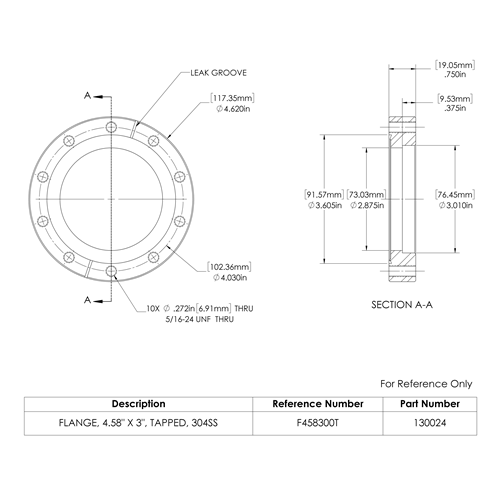

Flange, 4.58" x 3", Tapped, 304ss
130024_sc_dxf (2.98 kB)
130024_fr_dwg (4.25 kB)
130024_fr_dxf (2.37 kB)
130024_sc_dwg (4.77 kB)
130024.stp (149.78 kB)

More Information

Specifications

Specifications
Weight (lb) 0.500000
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 10
Thread Size 0.312-24 UNF
Bolt Hole Type Tapped
Flange Geometry Non-Rotatable
Flange Size DN75CF 117mm | 4.625 " (4 5/8")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 3 Inch Nominal (2.875)
