Flange, 4.58" x 3" (116.33mm x 76.2mm), 304ss

SKU
110024
$68.25
Availability: Backordered

This product is currently on back order. Orders are still accepted, but the requested qty will be back ordered.

Quantity:
0 Available
Lead Time:
6 weeks
Have a Question? Our customer service team is ready to help! Monday - Friday 9am - 6pm PST Call 1.510.265.3500 or Email Us.

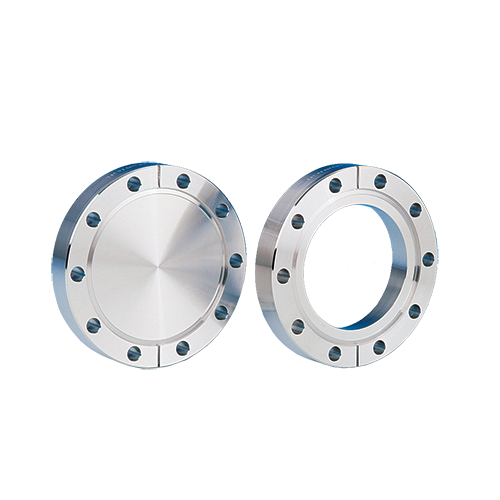

Flange, 4.58" x 3", 304ss

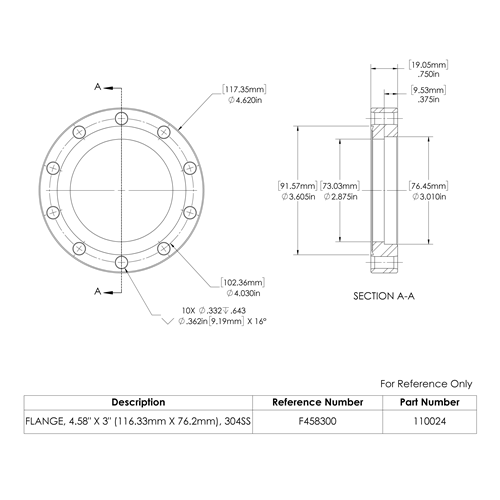

110024_FR_dwg (4.12 kB)
110024_sc_dxf (2.98 kB)
110024.stp (120.02 kB)
110024_fr_dxf (2.27 kB)
110024_SC_dwg (4.78 kB)

More Information

Specifications

Specifications
Weight 0.500000
Bolt Hole Diameter 0.332 inch
Material 304SS (1.4301 | UNS S30400) Stainless Steel
Number of Bolt Holes 10
Bolt Hole Type Clearance
Flange Geometry Non-Rotatable
Flange Size DN75CF 117mm | 4.625 " (4 5/8")
Flange Type Del-Seal CF ConFlat
Internal Diameter (ID) 3 Inch Nominal (2.875)
