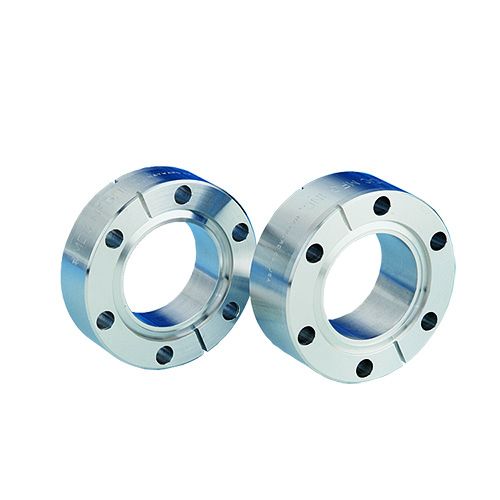

Double Sided Flange, 3.38"x2"
Part Number / SKU
140017
$97.65
Availability:
In Stock
Double Sided Flange, 3.38"x2"
More Information

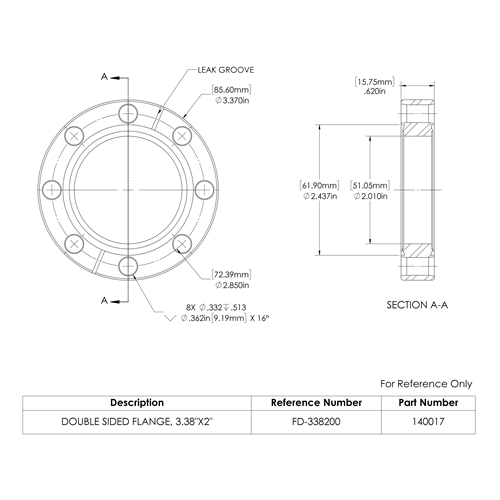

Specifications
| Weight (lb) | 1.00 |
| Bolt Circle Diameter | 2.850 inch |
| Bolt Hole Diameter | 0.332 inch |
| Material | 304SS (1.4301 | UNS S30400) Stainless Steel |
| Number of Bolt Holes | 8 |
| Bolt Hole Type | Clearance |
| Flange Size | DN50CF 86mm | 3.375" (3 3/8") OD |
| Flange Type | ConFlat CF Flange |
| Internal Diameter (ID) | 50.8mm | 2 inch ID Nominal (2.010") |
