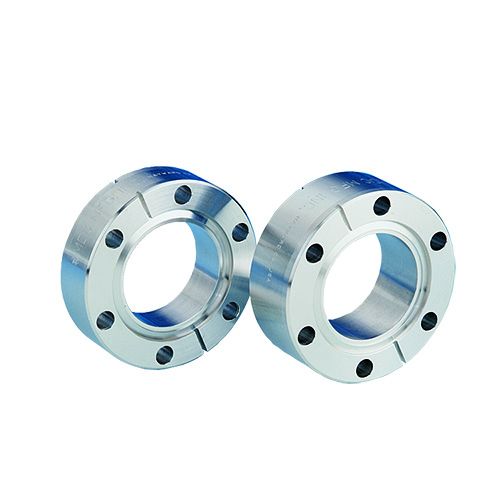

Double Sided Flange, 4.5"x2.5"
Part Number / SKU
140021
$98.70
Availability:
In Stock
Double Sided Flange, 4.5"x2.5"
More Information

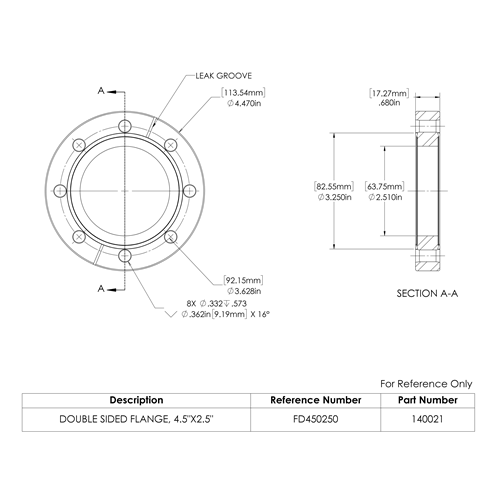

Specifications
| Weight (lb) | 2.00 |
| Bolt Circle Diameter | 3.628 inch |
| Bolt Hole Diameter | 0.332 inch |
| Material | 304SS (1.4301 | UNS S30400) Stainless Steel |
| Number of Bolt Holes | 8 |
| Bolt Hole Type | Clearance |
| Flange Size | DN63CF 114mm | 4.50" (4 1/2") OD |
| Flange Type | ConFlat CF Flange |
| Internal Diameter (ID) | 63.5mm | 2 1/2 Inch ID Nominal (2.510") |
